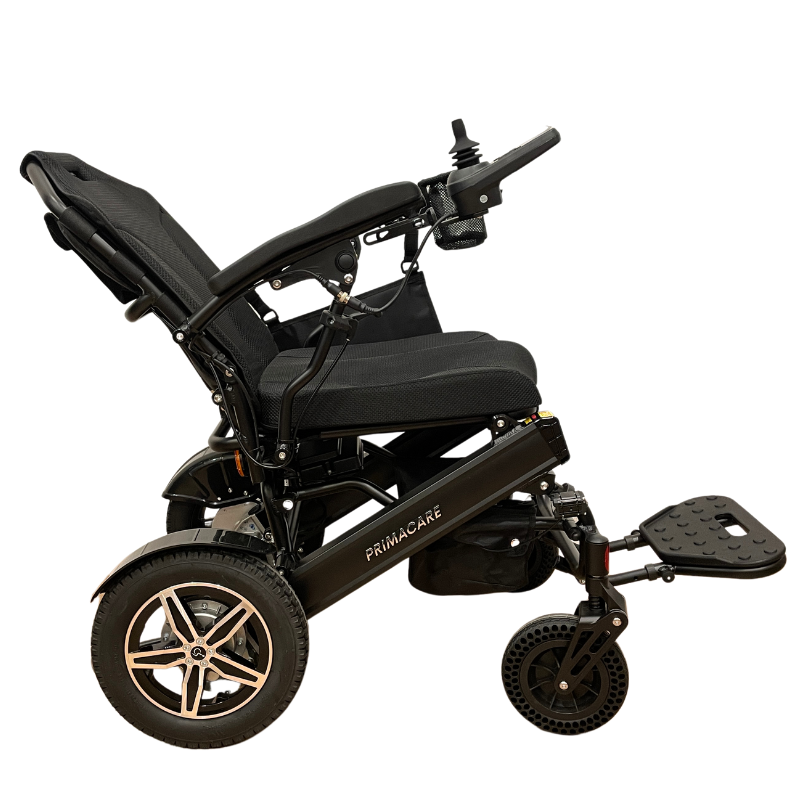

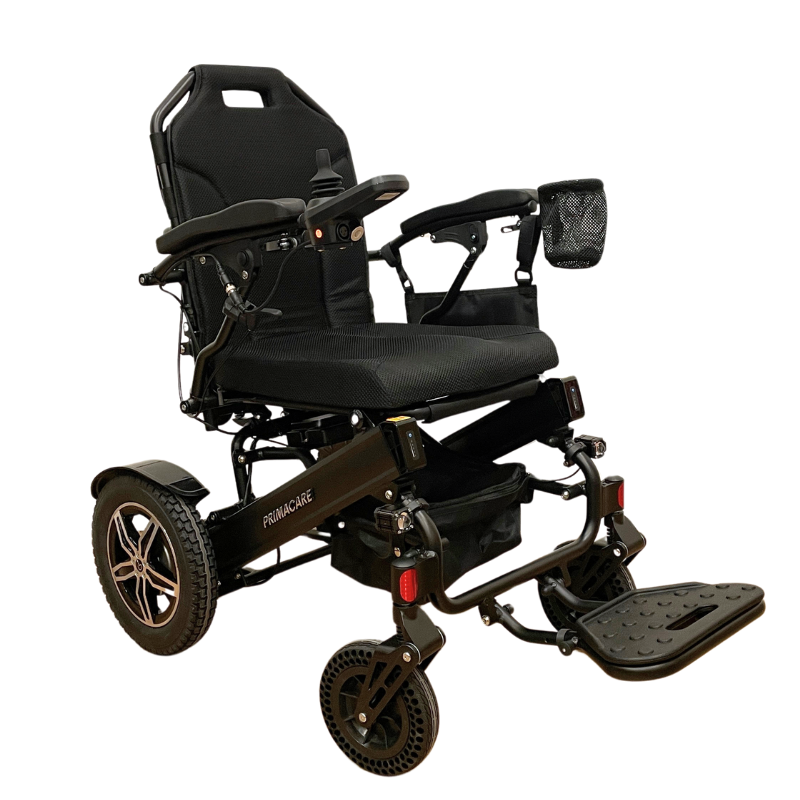

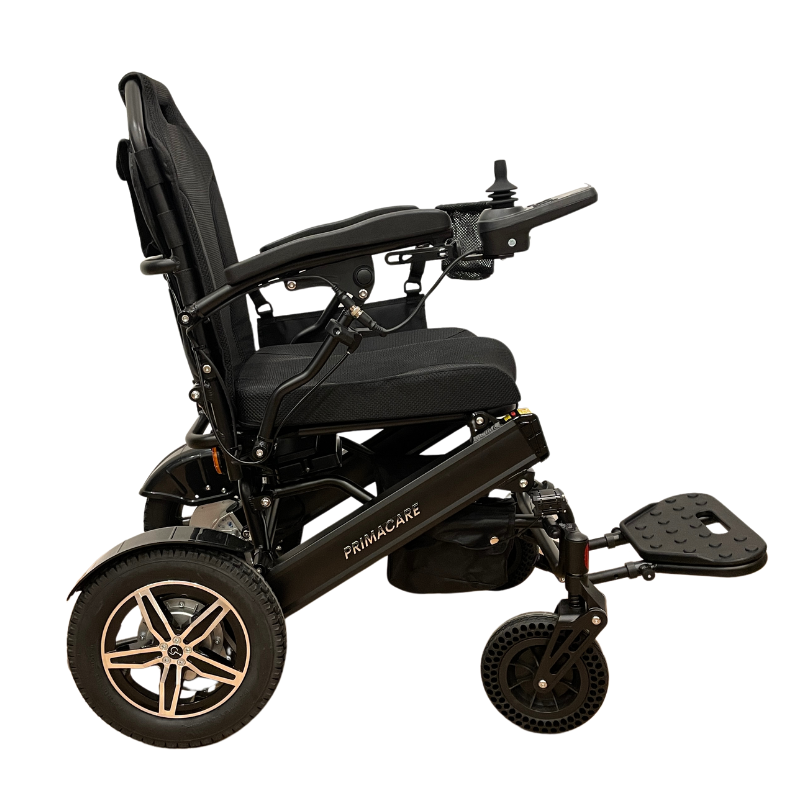

PrimaCare Pinnacle Motorised Wheelchair

The PrimaCare Pinnacle Motorised Wheelchair has an adjustable backrest which allows users to choose the angle which allows for maximum comfort. It also comes with a unique shock suspension system coupled with a smart electromagnetic brake system for an extra comfortable ride.

• Features
• Specifications

• Backrest can be reclined up to 105°

  Backrest angle can be adjusted for greater user comfort

  Unique multi-link shock suspension system for a comfortable ride

  Smart electromagnetic brake system

  Twin 250W high-efficiency brushless technology wheel hubs

  Sleek battery compartment design saves space and promotes ease of use

  Well-padded contoured upholstery for extra comfort

  Flip-up armrests with safety lock for easy transfers

  Tension adjustable backrest and seat, adjustable footrests

  Safety belt included

  LTA compliant Personal Mobility Aid

• Weight with battery: 33 kg

  Batteries: 12V/ 6AH Li-ion x 2 units

  Charging time: 5 - 6 hours

  Seat size (W x D): 18.5" x 19.5"

  Overall width: 23.5"

  Floor-to-seat height: 22.5"

  Backrest height: 39"

  Wheel size: Solid PU 8" x 1.7" (front), 12" x 2.2" (rear)

  Minimum turning radius: 83.5 cm

  Reversing width: ≤1.5 m

  Braking system: Smart electromagnetic brake

  Max braking distance on flat surface: ≤1.5 m

  Max safe slope: 12°

  Obstacle climbing: 4 cm

  Max range: 20 - 24 km

  Max speed: 6 km/h

  Weight capacity: 150 kg

  Motor: Brushless motors DC 250W/24V x 2

  Water splash rating: IPX3

  Warranty: 1 year on frame chassis, 6 months on batteries
